WHY install our LEV Monitor?

The Health and Safety Executive (HSE) recommend that an indicator should be fitted to all Local Exhaust Ventilation (LEV) systems to provide an indication of sufficient Air Flow.

Any LEV system installed will be designed to ensure that any airborne contaminants are safely removed, however the improper use or maintenance of such a system can cause serious health risks for anyone working in the area.

Installing an LEV Monitor makes the worry and risk of having an unsafe working environment a thing of the past. Most people rely on mechanical pressure gauges, which carry inherent problems due to only being available for certain pressure ranges, so the indicated ‘safe area’ may not be the case for your system.

The LEV Monitor is a ‘one size fits all’ solution. This robust, battery operated unit can be installed onto any duct and displays a simple Arrow or Cross, both supported by ultra-bright Red or Green LED’s to provide an indication of sufficient, or more importantly, insufficient air flow.

LEV Monitor Product Options:

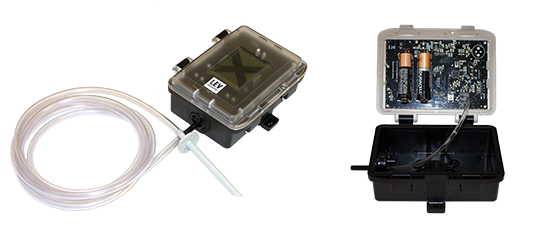

WALL MOUNT UNIT

This content will be related to the WALL mount unit how its mounted and different to the Duct unit

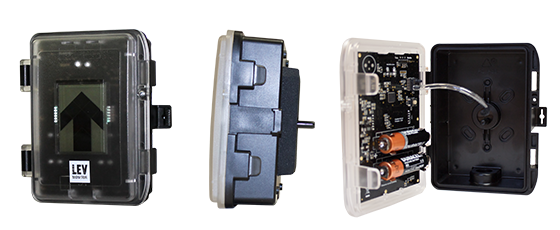

DUCT MOUNT UNIT

This content will be related to the DUCT mount unit how its mounted and different to the wall unit

HOW does the LEV Monitor work?

The LEV Monitor can be securely fastened to any duct using the screws and/or strapping provided. As the duct probe is fixed to the back of the unit, simply drill a 7mm hole into the duct and fasten in place. The built in seal will stop any air leakages and there is no requirement for additional hoses that can be fiddly and get caught.

Once the LEV Monitor has been secured to the duct and the batteries are inserted (2x AA), a static Cross will display to indicate that calibration is. The LEV system should then be balanced ensuring that the air flow rates meet the minimum requirements for the specific system, and calibration is as straight forward as pressing a button.

Following calibration the LEV Monitor will display an animated Arrow, accompanied by an ultra-bright Green LED to provide assurance that the system is operating correctly and safely. If the air flow rates drop below the set threshold, the LEV Monitor will display a flashing Cross accompanied by a Red LED to advise that action needs taking!

It also comes with a built in timer to advise that the LEV system is overdue a Thorough Examination and Test (TExT). The timer can be easily adjusted to 3, 6 or 14 Months. We strongly recommend that the batteries be replaced each time the LEV system is inspected.

With a range of 2,000 Pa the LEV Monitor is suitable for use with most systems, and as an added safety feature, a minimum set point of 100 Pa is in place to ensure that the system cannot be calibrated when the LEV system is not running.
